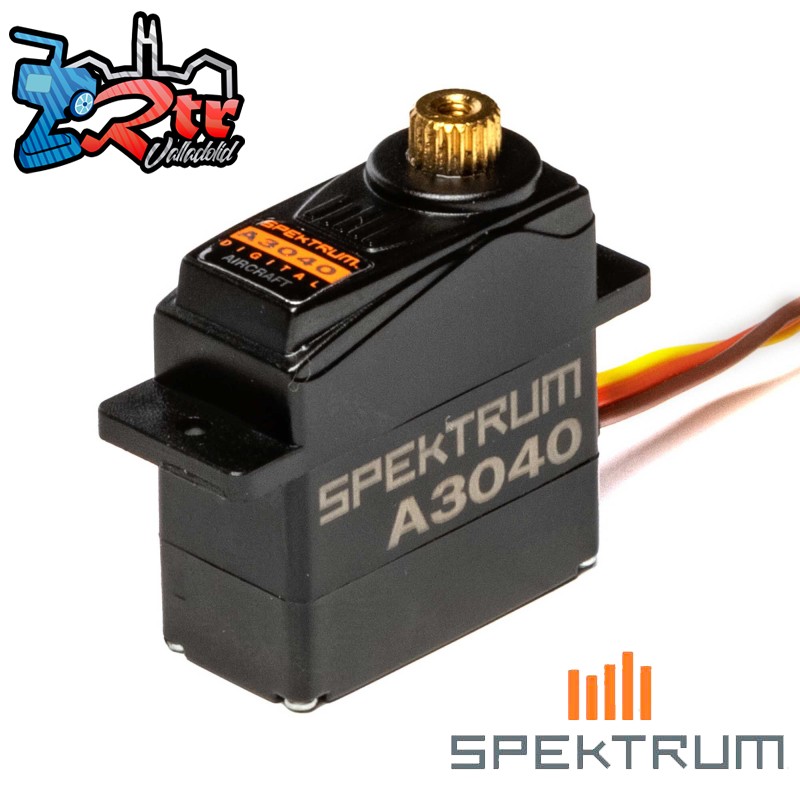

A3040 Sub-Micro Digital High Torque Metal Gear Aircraft Servo

39,99 €
No tax
A3040 Sub-Micro Digital High Torque Metal Gear Aircraft Servo
Cantidad
Producto disponible bajo demanda, entrega de 2 a 4 días después de su compra







Product Details

Key Features

  • High speed
  • Low cost
  • Low deadband
  • Digital precision
  • Metal gears

Overview

This 0.10-second transit time (at 6 volts), 28 oz-in of torque, metal gear servo is an ideal combination of weight, speed and holding power for slow and park flyer aircraft. Ball bearing support around the output shank helps keep the servo precise for many flights to come.

Choose the A3040 servo for electric aircraft and sailplanes where the robust nature of metal gears is desired. The low deadband technology means that you’ll enjoy reliable accuracy and precision.

Detailed Information

Click Here to see Spektrum's Servo Reference Chart


Product Specifications

Application Air
Bearing Single
Bushing Or Bearing Bearing
Gear Type Metal
Material Plastic
Maximum Servo Torque 23 oz-in (1.66 kg-cm) @ 4.8V; 28 oz-in (2 kg-cm) @ 6.0V
Product Application Air
Product Height 1" (25 mm)
Product Length 0.93" (24 mm)
Product Weight 0.44 oz (12.6 g)
Product Width 0.45" (11 mm)
Programmable No
Servo Operating Voltage 4.8 - 6.0V
Servo Size Category Sub-Micro
Servo Type Digital
Water-Resistant No



SPMSA3040
