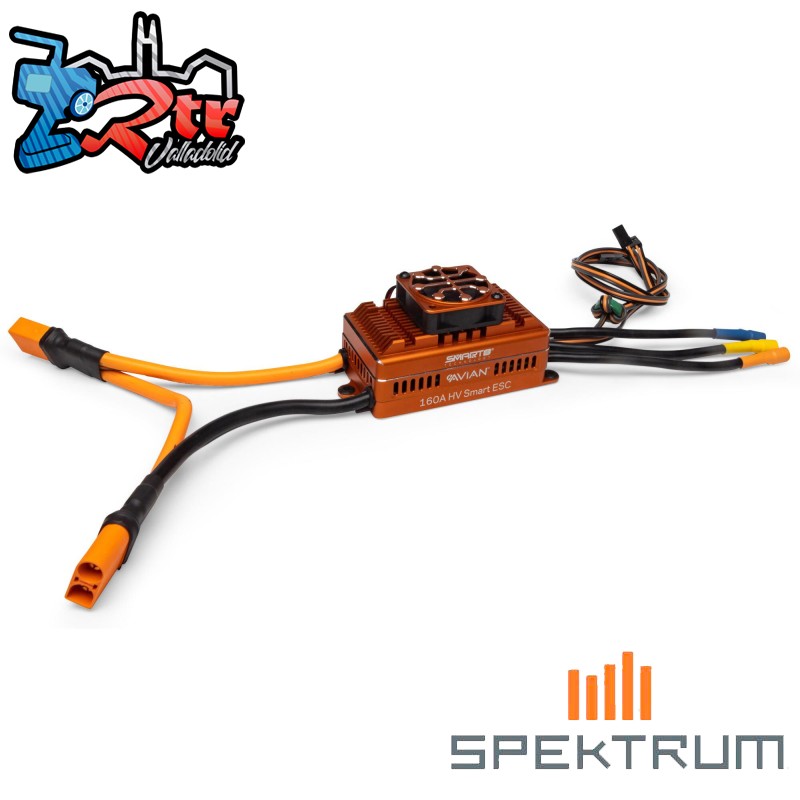

Avian 160-Amp HV Brushless Smart ESC 6S-14S

279,99 €
No tax
Avian 160-Amp HV Brushless Smart ESC 6S-14S
Cantidad
Producto disponible bajo demanda, entrega de 2 a 4 días después de su compra







Product Details

Key Features
  • Smart All-in-one Telemetry
  • Fast, Powerful 32-bit ARM M4 Processor
  • Compact For Easy Installation In Most Applications
  • Ready To Install — No Soldering Required
  • Limited 1-year Warranty
In The Box
  • (1) Spektrum™ Avian™ Smart 160A HV Brushless ESC
  • (1) Spektrum Smart Sticker Sheet
  • (1) Product Manual
Needed to Complete
  • Spektrum™ Aircraft Receiver
  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter
Avian 160-Amp HV Brushless Smart ESC 6S-14S

Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Multiple options for easy programming:
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
    • Throttle stick programming
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Heat dissipating design
  • Dual BEC power connectors
  • Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty

Overview

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.

EC3™/EC5™ Backwards Compatible

Avian ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3 or IC5 connector-equipped Spektrum Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 connectors are also compatible with Avian ESCs for basic operation and ESC telemetry.

Smart Technology Battery Data

When used with a Spektrum Smart LiPo battery, your Avian ESC provides you with the benefit of battery telemetry that's automatically transmitted to your radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!

Multiple Programming Options

Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.

Fast, Powerful M4 Processor

The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

Smart ESC Thrust Reversing

Now included with Smart Avian ESCs is the ability to reverse the motor at the flip of a switch! This allows for pilots to use the power system for increased mobility on the ground as well as acting as a brake for models requiring more runway to land. This function requires a Smart compatible Spektrum Transmitter and Receiver and needs to be activated with in the ESC parameters.

On-Screen ESC Programming

Avian ESCs now come updated to allow pilots to program any ESC parameter, right from their Spektrum Transmitter, via the Avian Prog telemetry screen. This makes it easier to make quick setting changes, adjustments and experimentation to maximize power output or efficiency, right on the flight line, no extra boxes or modules required! This function requires a Smart telemetry compatible Spektrum Transmitter and Receiver.



Product Specifications

Amperage 160A
Application Air Motor
Auto Cutoff Yes
BEC Yes
BEC Continous Current 10A
BEC Maximum Burst Current 25A
BEC Type Adjustable
BEC Voltage 6.0V/7.4V/8.4V
Connector Type IC5
Forward Yes
Input Voltage 6S - 14S LiPo
Low-Voltage Cutoff Programmable Yes
Maximum Burst Current 200A
Maximum Continuous Current 160A
Motor Type Brushless
Overload Protection Yes
Product Height 1.4" (36 mm)
Product Length 3.5" (89 mm)
Product Weight 376g (13.3oz)
Product Width 1.96" (50 mm)
Programmable Yes
Reverse Yes
Technology Smart



SPMXAE1160HV
